This function creates a co-occurrence matrix based on one or more

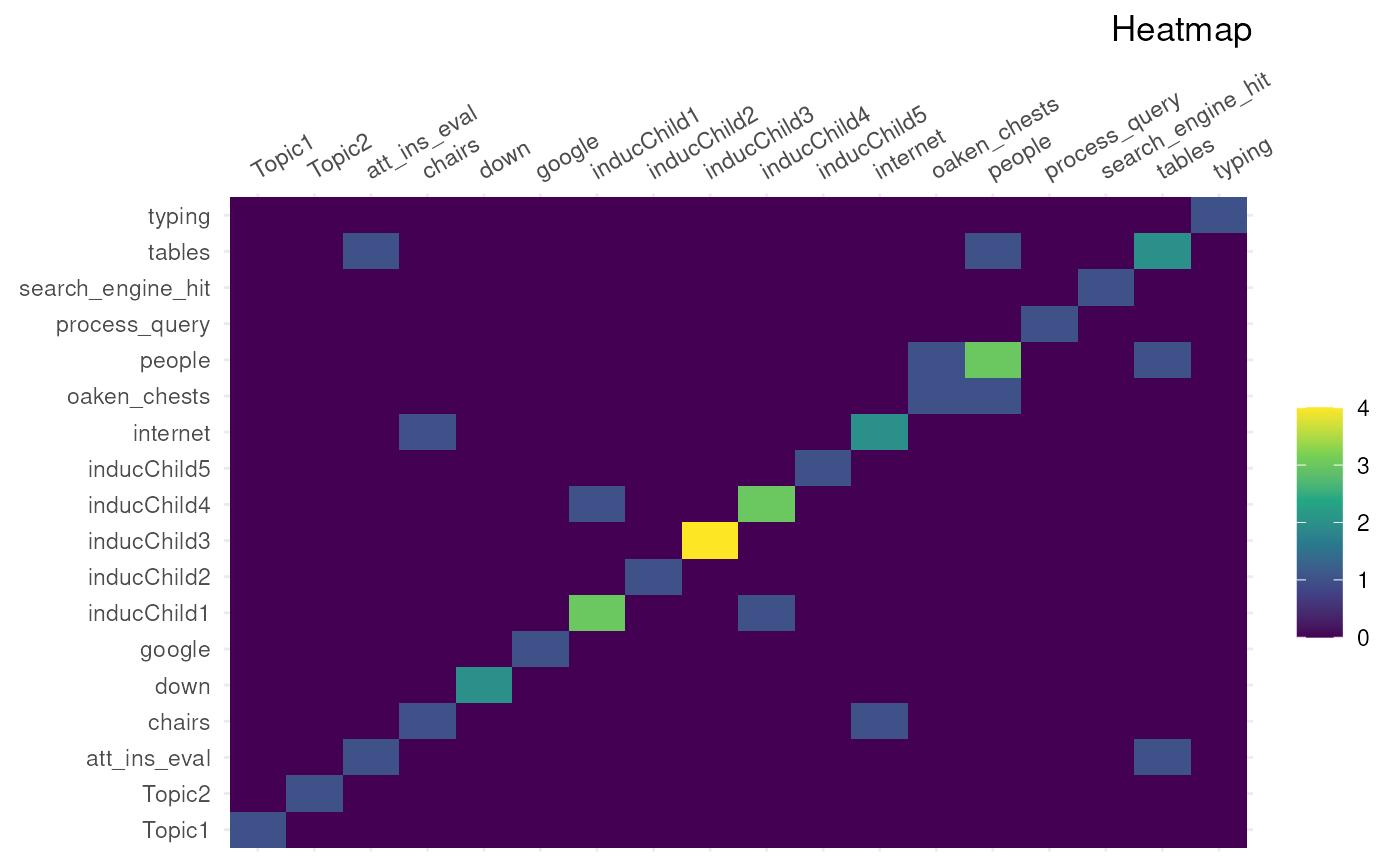

coded sources. Optionally, it plots a heatmap, simply by calling
the stats::heatmap() function on that matrix.
create_cooccurrence_matrix(
x,
codes = x$convenience$codingLeaves,
plotHeatmap = FALSE
)The parsed source(s) as provided by rock::parse_source or rock::parse_sources.
The codes to include; by default, takes all codes.
Whether to plot the heatmap.
The co-occurrence matrix; a matrix.
### Get path to example source
examplePath <-
system.file("extdata", package="rock");
### Parse a selection of example sources in that directory
parsedExamples <-
rock::parse_sources(
examplePath,
regex = "(test|example)(.txt|.rock)"
);
### Create cooccurrence matrix
rock::create_cooccurrence_matrix(parsedExamples);
#> Topic1 Topic2 att_ins_eval chairs down google inducChild1
#> Topic1 1 0 0 0 0 0 0
#> Topic2 0 1 0 0 0 0 0
#> att_ins_eval 0 0 1 0 0 0 0
#> chairs 0 0 0 1 0 0 0
#> down 0 0 0 0 2 0 0
#> google 0 0 0 0 0 1 0
#> inducChild1 0 0 0 0 0 0 3
#> inducChild2 0 0 0 0 0 0 0
#> inducChild3 0 0 0 0 0 0 0
#> inducChild4 0 0 0 0 0 0 1
#> inducChild5 0 0 0 0 0 0 0
#> internet 0 0 0 1 0 0 0
#> oaken_chests 0 0 0 0 0 0 0
#> people 0 0 0 0 0 0 0
#> process_query 0 0 0 0 0 0 0
#> search_engine_hit 0 0 0 0 0 0 0
#> tables 0 0 1 0 0 0 0
#> typing 0 0 0 0 0 0 0
#> inducChild2 inducChild3 inducChild4 inducChild5 internet
#> Topic1 0 0 0 0 0
#> Topic2 0 0 0 0 0
#> att_ins_eval 0 0 0 0 0
#> chairs 0 0 0 0 1
#> down 0 0 0 0 0
#> google 0 0 0 0 0
#> inducChild1 0 0 1 0 0
#> inducChild2 1 0 0 0 0
#> inducChild3 0 4 0 0 0
#> inducChild4 0 0 3 0 0
#> inducChild5 0 0 0 1 0
#> internet 0 0 0 0 2
#> oaken_chests 0 0 0 0 0
#> people 0 0 0 0 0
#> process_query 0 0 0 0 0
#> search_engine_hit 0 0 0 0 0
#> tables 0 0 0 0 0
#> typing 0 0 0 0 0
#> oaken_chests people process_query search_engine_hit tables
#> Topic1 0 0 0 0 0
#> Topic2 0 0 0 0 0
#> att_ins_eval 0 0 0 0 1
#> chairs 0 0 0 0 0
#> down 0 0 0 0 0
#> google 0 0 0 0 0
#> inducChild1 0 0 0 0 0
#> inducChild2 0 0 0 0 0
#> inducChild3 0 0 0 0 0
#> inducChild4 0 0 0 0 0
#> inducChild5 0 0 0 0 0
#> internet 0 0 0 0 0
#> oaken_chests 1 1 0 0 0
#> people 1 3 0 0 1
#> process_query 0 0 1 0 0
#> search_engine_hit 0 0 0 1 0
#> tables 0 1 0 0 2
#> typing 0 0 0 0 0
#> typing
#> Topic1 0
#> Topic2 0
#> att_ins_eval 0
#> chairs 0
#> down 0
#> google 0
#> inducChild1 0
#> inducChild2 0
#> inducChild3 0
#> inducChild4 0
#> inducChild5 0
#> internet 0
#> oaken_chests 0
#> people 0
#> process_query 0
#> search_engine_hit 0
#> tables 0
#> typing 1
